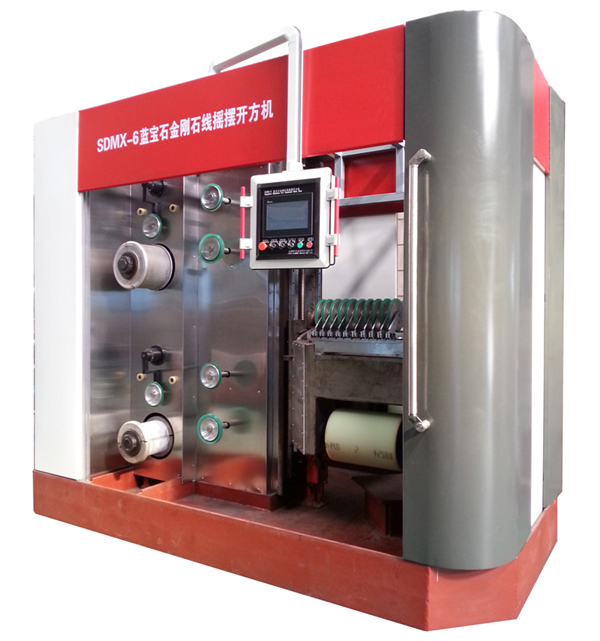

SDMX-6 Sapphire Diamond Wire Swing Squaring Machine is a special diamond multi-wire cutting equipment developed by us according to the special needs of users. It is suitable for cutting large sapphire crystals into various square small pieces in batches. It can also cut slices with a height of less than 200mm and a width of less than 300 mm.
Its cutting size reaches a sheave width of 400mm and a cutting height of 800 mm. It also adopts a unique technology that the base can be partially disassembled and moved, which effectively improves the utilization rate of the crystal.
| Multi-line station cutting specifications | max：400X400mm |
| Angle of rotating table | Resolution 0.01 degrees, digital display |
| Bearing of the rotating workbench | 500 kg |
| Workbench lifting stroke | max 1000㎜ |
| Cutting speed during cutting | 0.01～99.9㎜/min adjustable |
| Wire diameter | Outer diameter φ0.13～φ0.35㎜ |
| Spool storage | 3０km / volume |
| Adjustable tension range | 5-80N |
| Line swing angle | ０～ ±7° adjustable |
| wire-speed | 900m/min |
| Winding spool small diameter | φ285mm |
| Overall size | 3100 × 1720 × 2800 mm |
| Weight | 6000kg |
