After we developed a multi-stop single-line swing sapphire diamond cutting machine, we continue to explore more effective cutting combination solutions. After discussions with some experts from the Chinese Academy of Sciences, and according to the special needs of users, we have developed a single-line and dual-purpose diamond wire cutting machine suitable for multiple varieties, small batches of special-shaped parts.

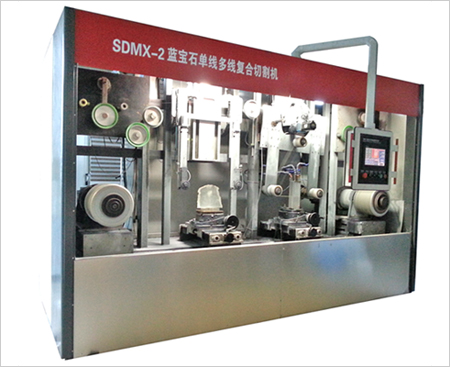

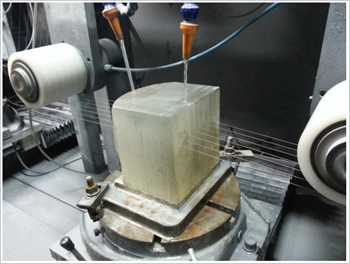

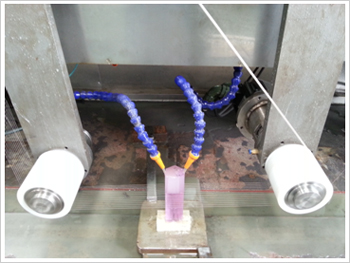

SDMX-2 sapphire single multi-line two-station swing cutting machine. One station on the left is made into a single-line swing cutting machine for opening ingots, and the other station on the right is made into a multi-line swing cutting machine, which can cut a thickness of 1mm to 10 mm. Large 300×300mm slices.
| Single line station cutting specifications | max：400X400mm |
| Multi-line station cutting specifications | max：300X300 X90mm |
| Angle of rotating table | Resolution 0.01 degrees, digital display |
| Bearing of the rotating workbench | 200 kg |
| Single-line workbench lifting stroke | max 450㎜ |
| Multi-line workbench lifting stroke | max 350㎜ |
| Cutting speed during cutting | 0.01～99.9㎜/min adjustable |
| Rapid rise speed | 0.01～999 ㎜/min adjustable |
| Wire diameter | Outer diameter φ0.13～φ0.35㎜ |
| Spool storage | 3０km / volume |
| Adjustable tension range | 5-50N |
| line swing angle | ０～ ±7° adjustable |
| Wire-speed | 600m/min |
| Winding spool small diameter | φ285mm |
| Overall size | 3460 × 1550 × 2300 mm |
| Weight | 3500kg |
